Commercial Property Development

Phase 1 Atlantic Point - Completed

  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
Client:
Task: Architecture Design Production Development Quality Assurance Planning Building
Skills: Planning Bricklaying Glazing Cladding Foundation Heavy Plant Steel work Roofing Electrical
Phase 1: Atlantic Gate.

Phase 1 Atlantic Point consists of performing ground works clearing the site ready for development of commercial units to be sold to Businesses and investors. Phase 1 building will be structurly capable of supporting a upper floor for office or extra storage space. All Phases are to be uniform in look and environmental performance.

Phase 1 foundation excavated, left to cure and is now ready for steel work to begin.

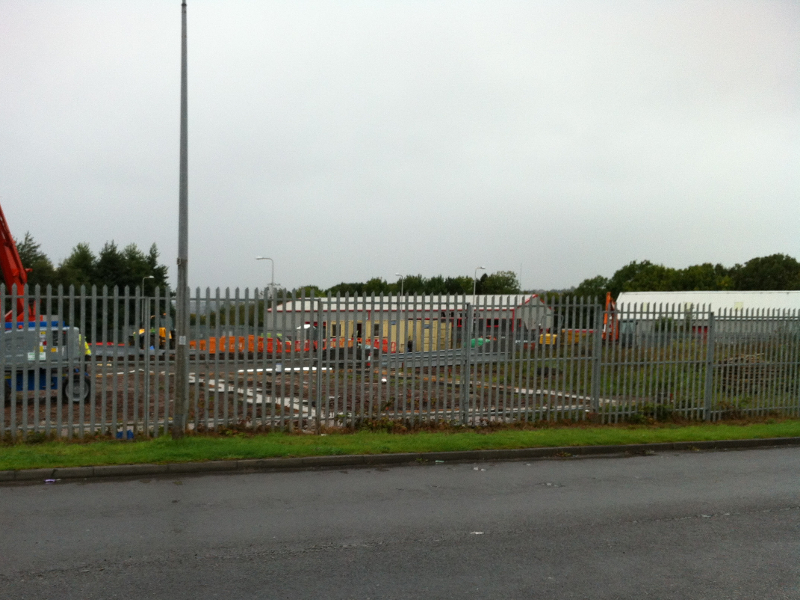

phase 1, atlantic point foundation complate

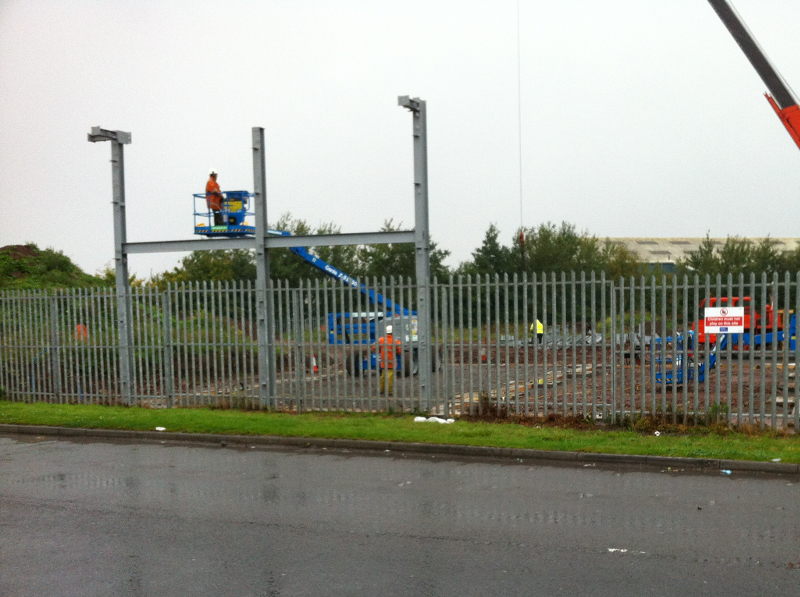

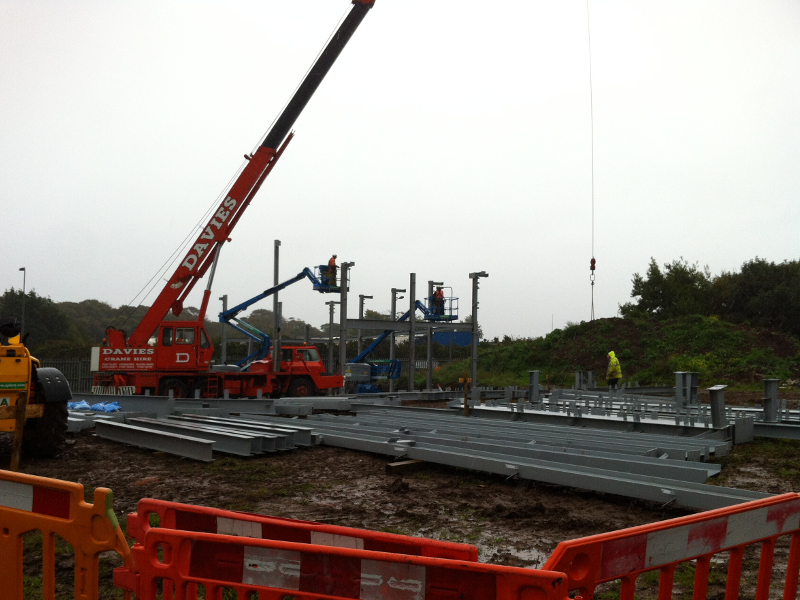

phase 1, atlantic point start erecting steel
phase 1, atlantic point foundation complate

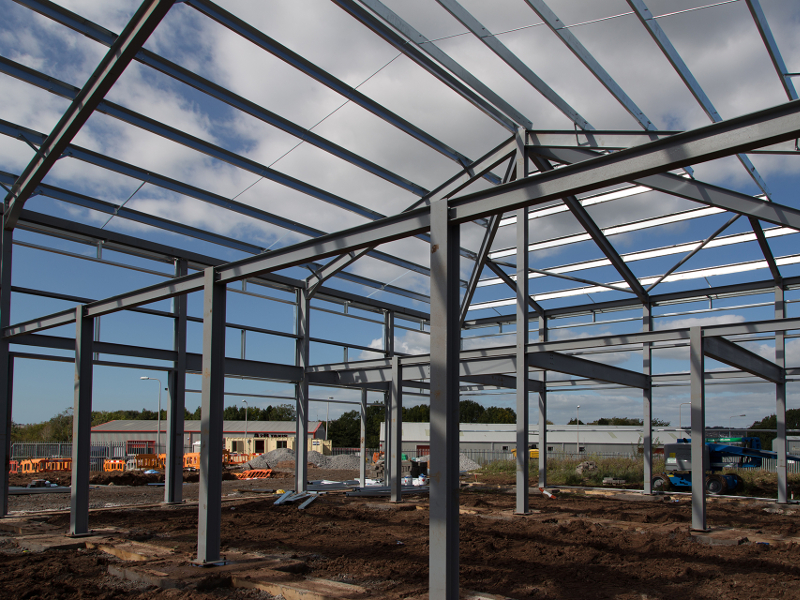

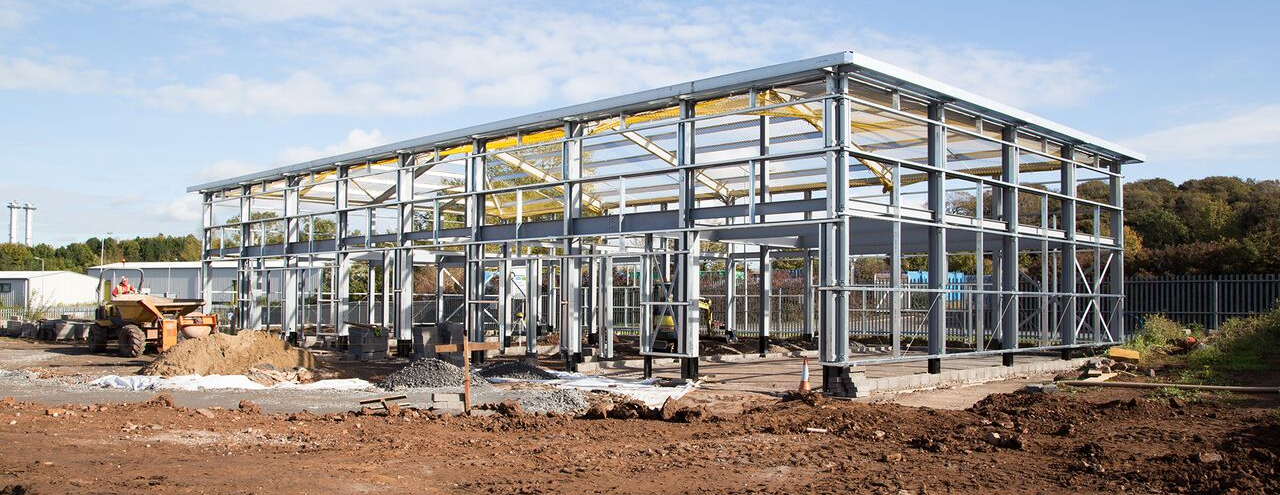

phase 1, atlantic point, steel frame finished

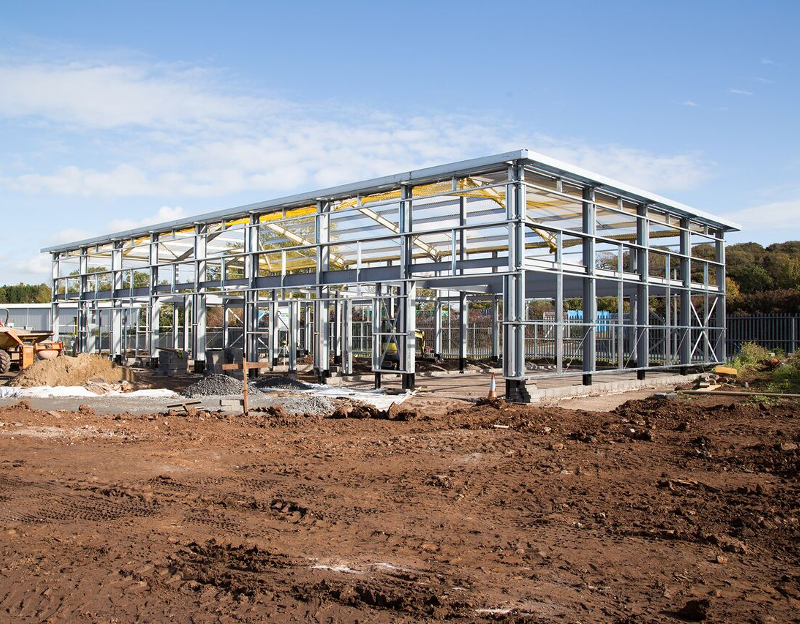

phase 1, atlantic point foundation complete
  • Placed pipes and ducting for water, fresh, rain, waste, electic's, gas and telecoms/data.
  • Floor was insulated prior to meshing being placed and then it was ready for the concrete to be poured and levelled.

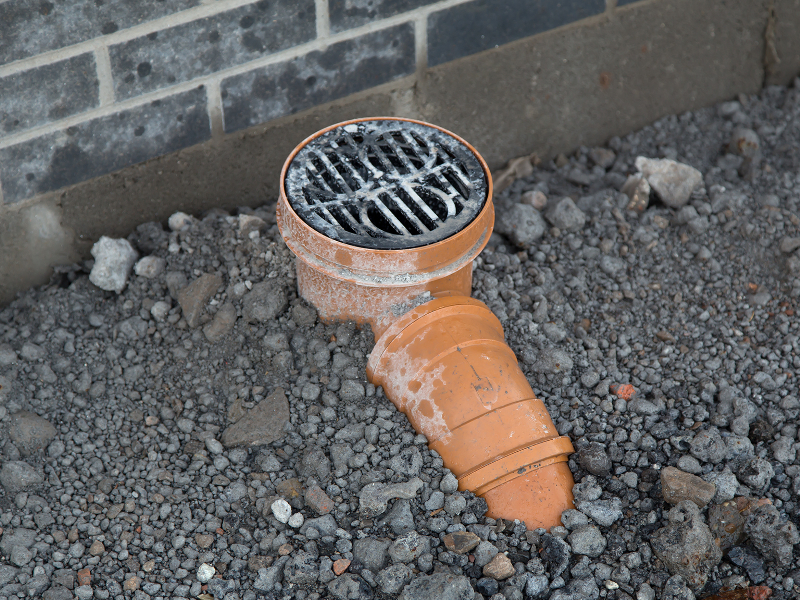

phase 1 drainage pipe

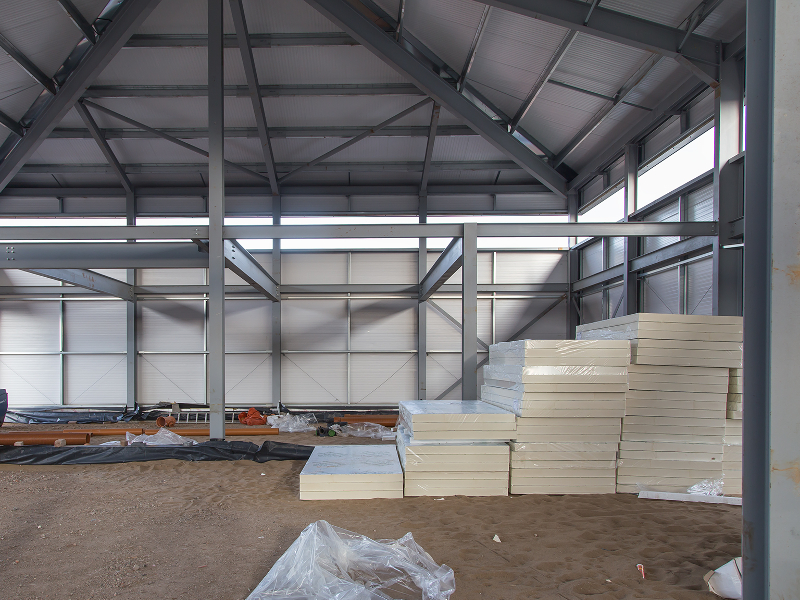

outer skin and roof now complete

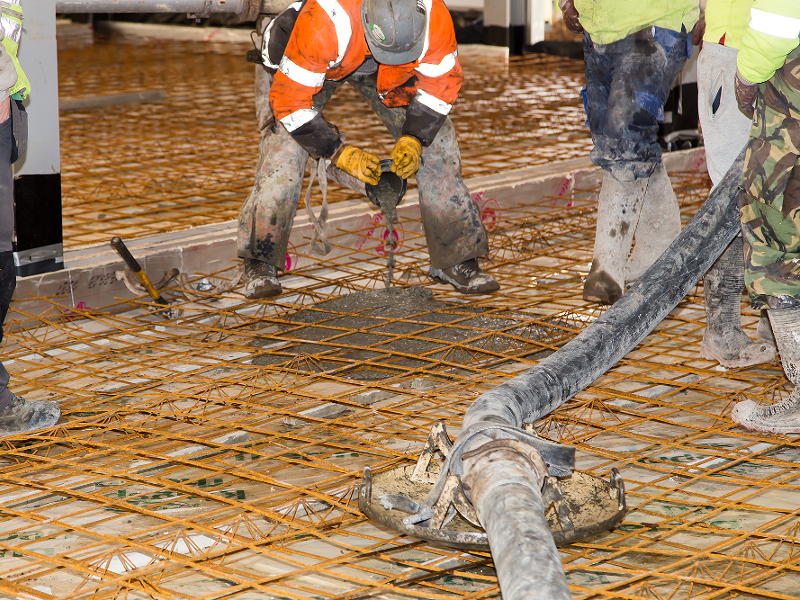

pour concrete floor

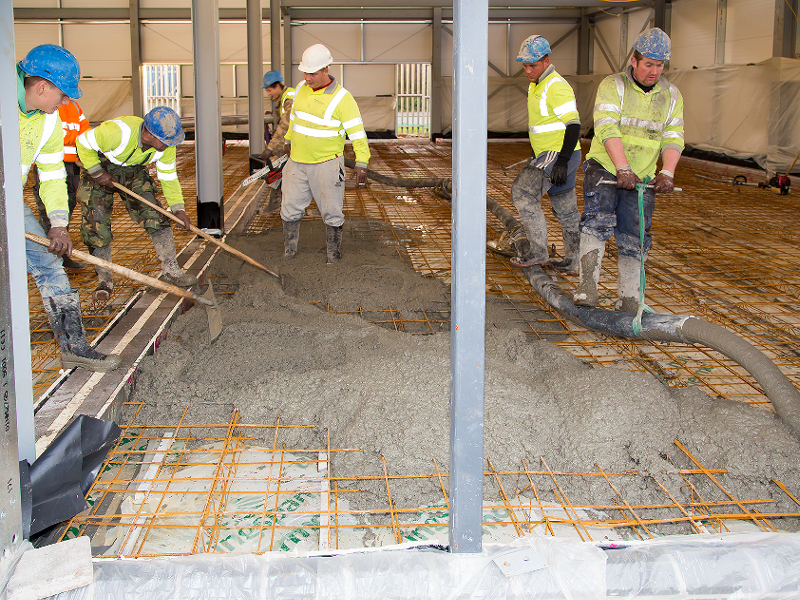

laying concrete insulated floor

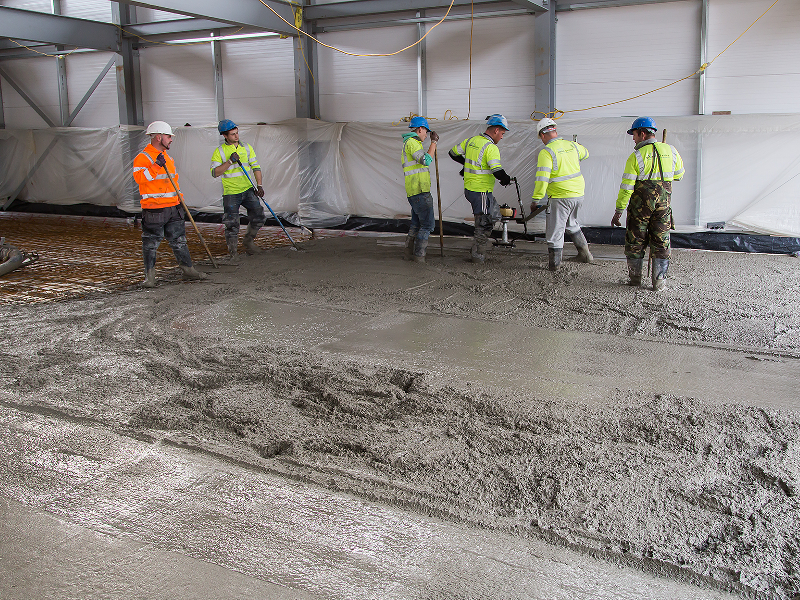

phase 1 insulated concrete floor still at it

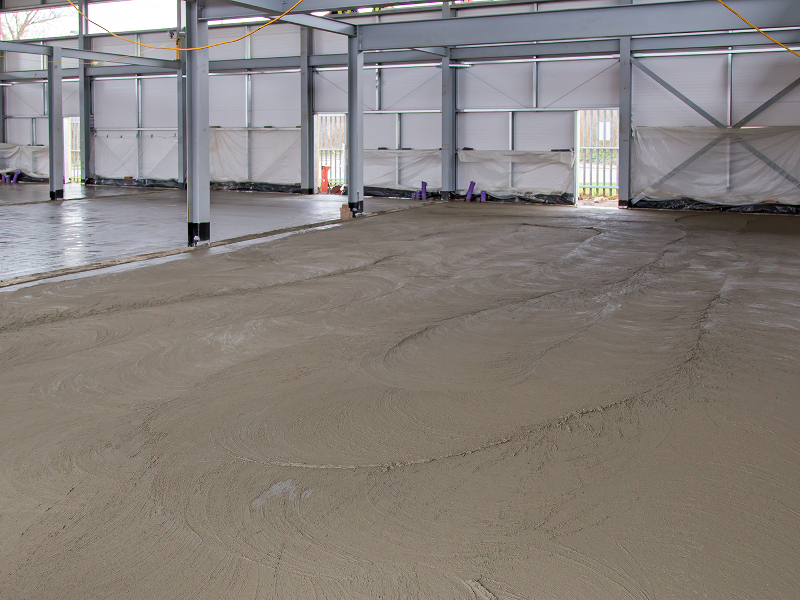

floor complete

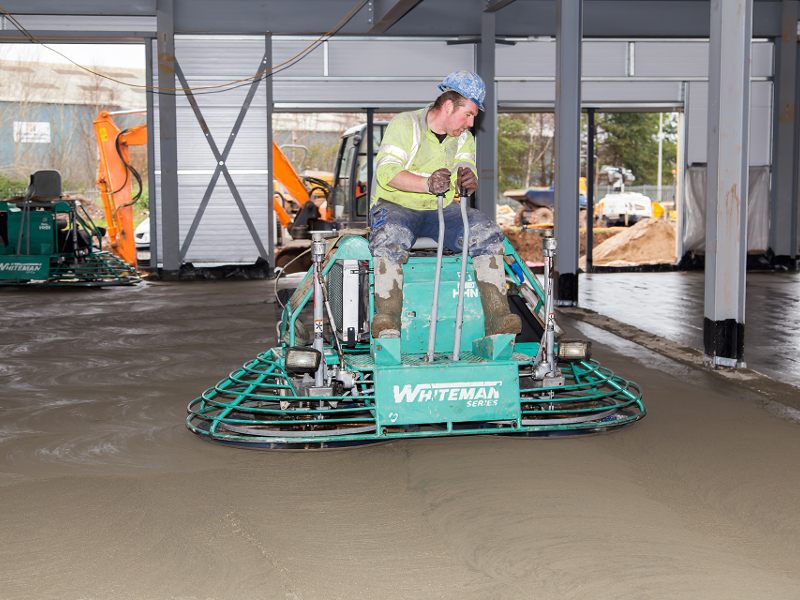

floor being flatened

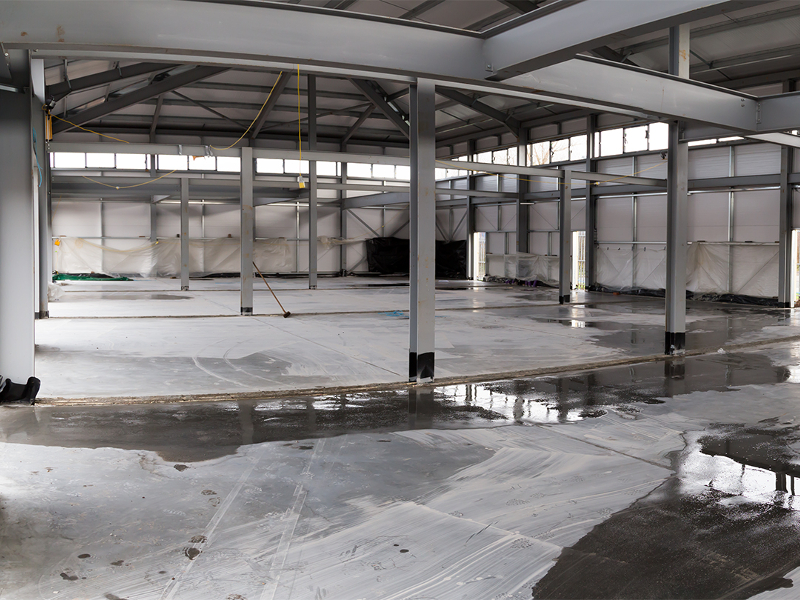

finsihed floor
  • Windows, entrance doors and roller shutter doors are next to be fitted to make the building weather proof

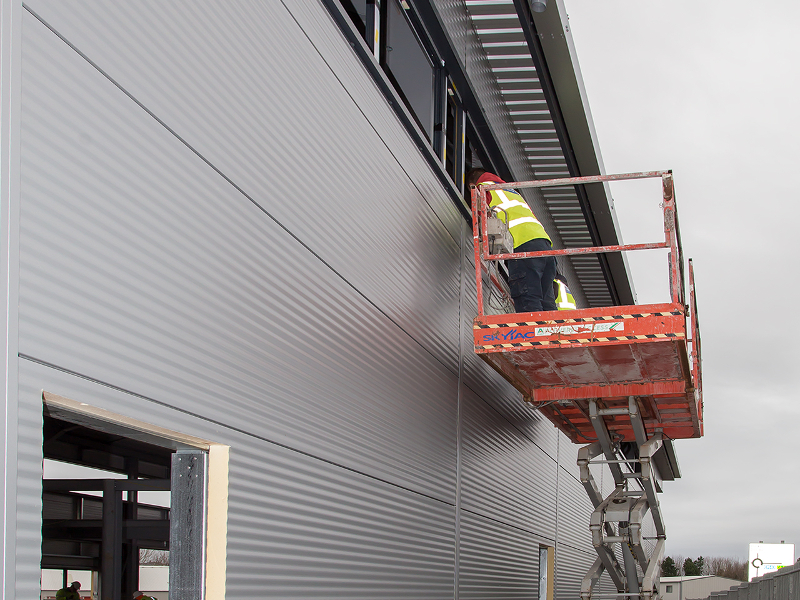

installation of windows on site

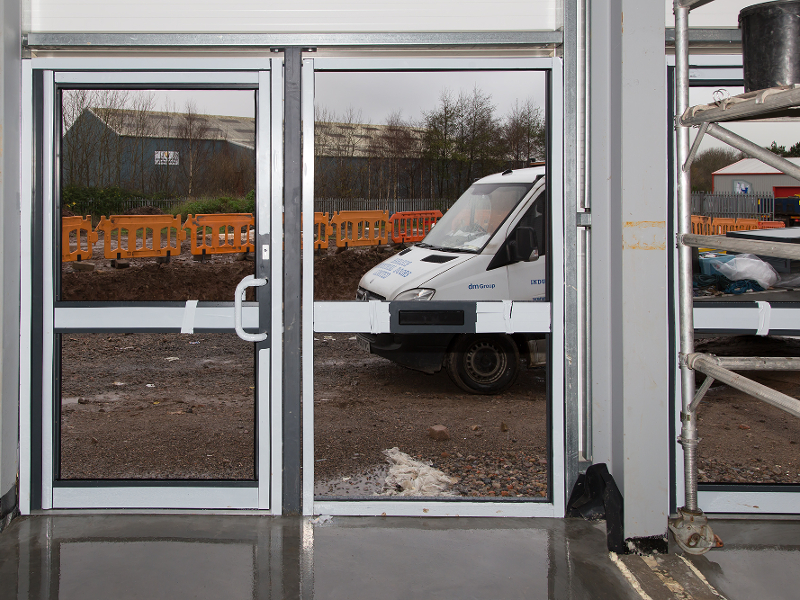

windows and doors fitted

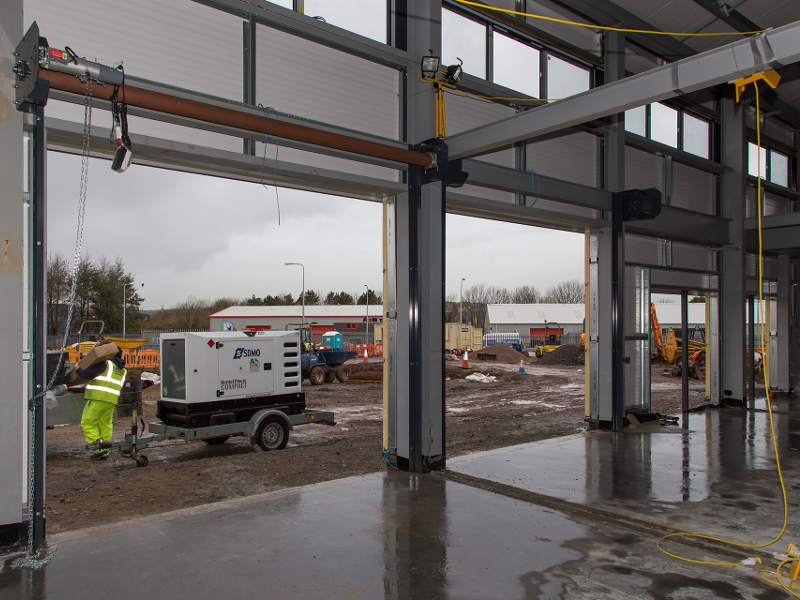

roller and entrance doors being fitted
  • Coating of internal steel work
  • Internal construction of partition walls
  • Upper office floor being constructed
  • Services being installed, gas, electric, water & waste

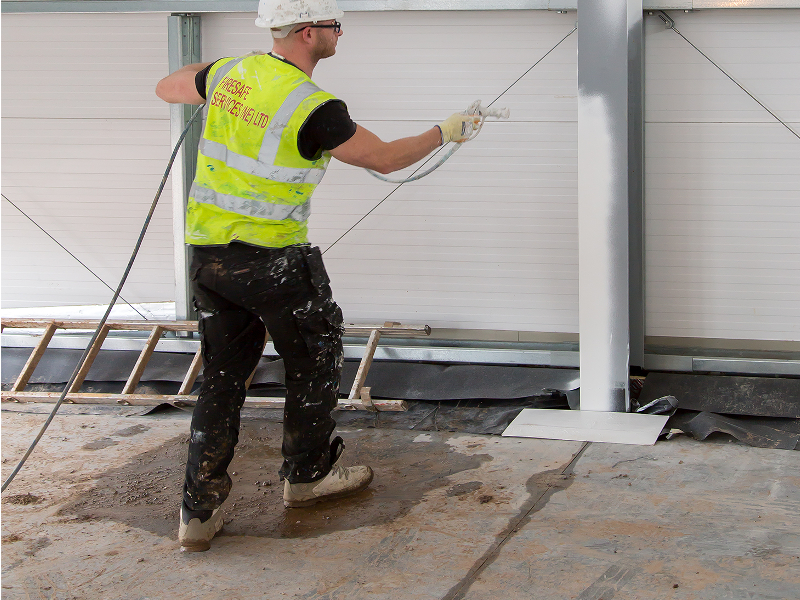

internal coating of steel work to add extra protection

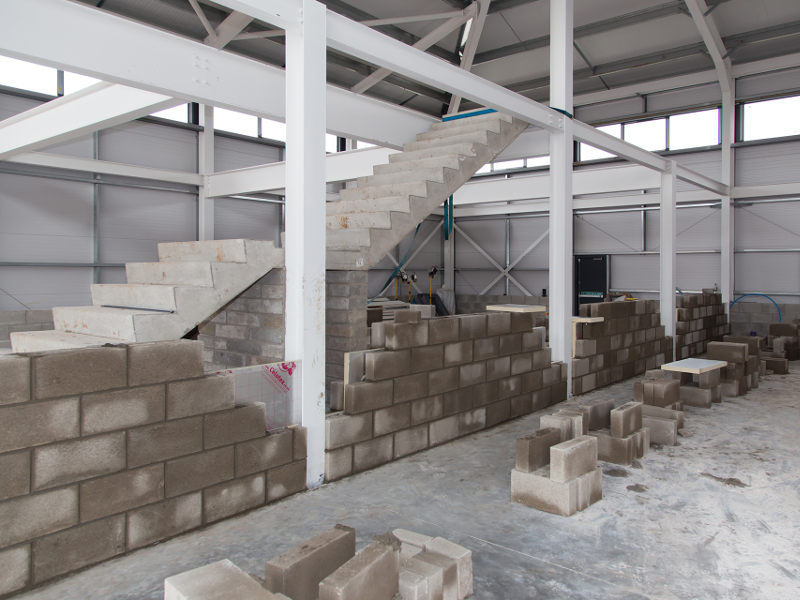

construction of internal partition walls

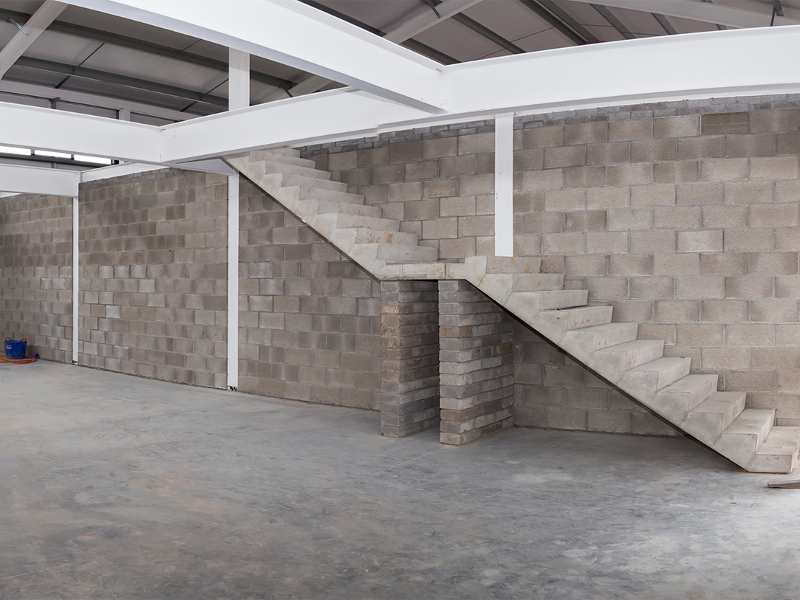

partition block work complete and stairs are installed

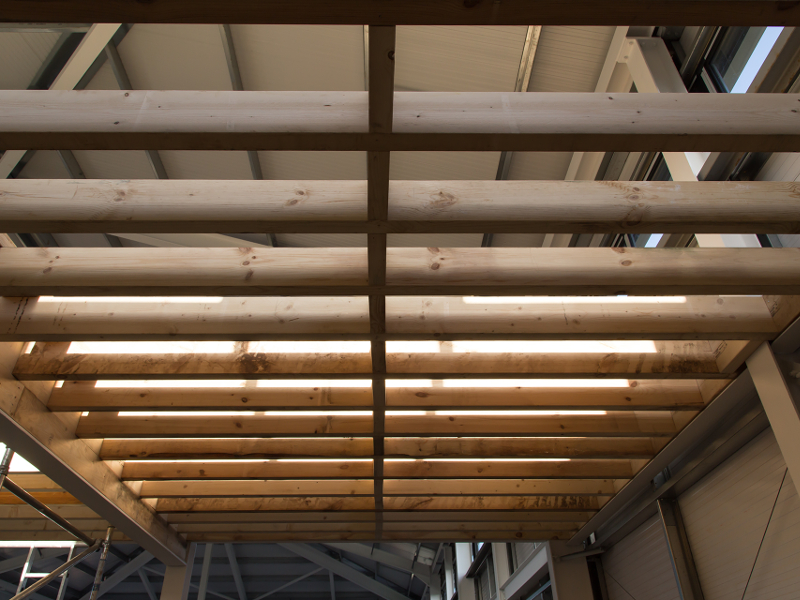

upper office area joists installed and ready for boarding and partitions

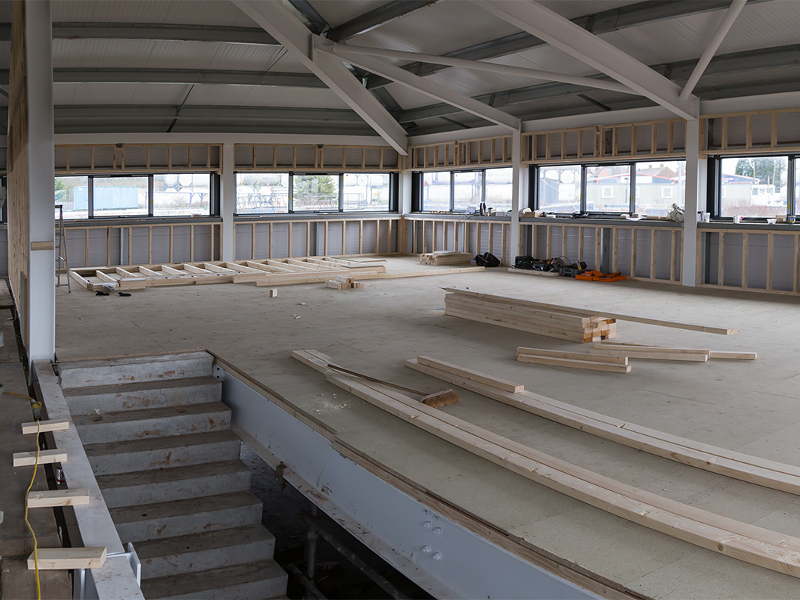

upper office area construction

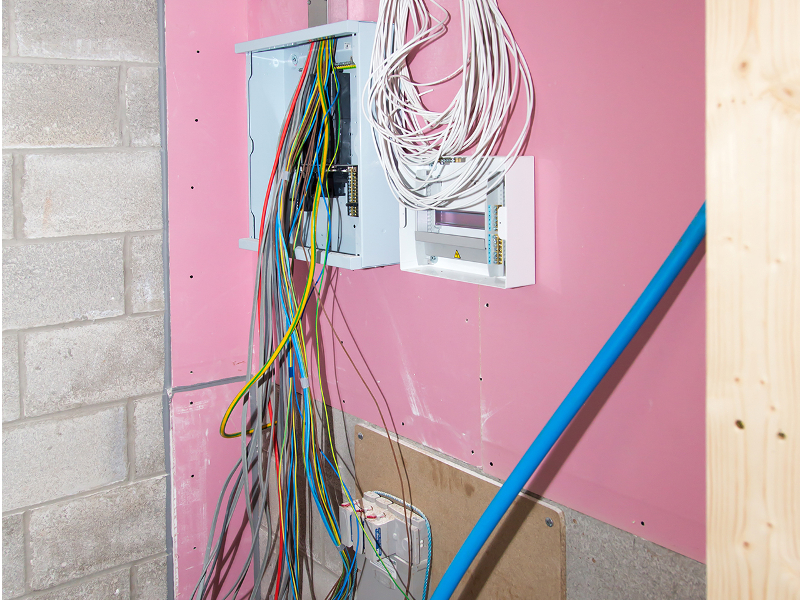

installation of main electrics

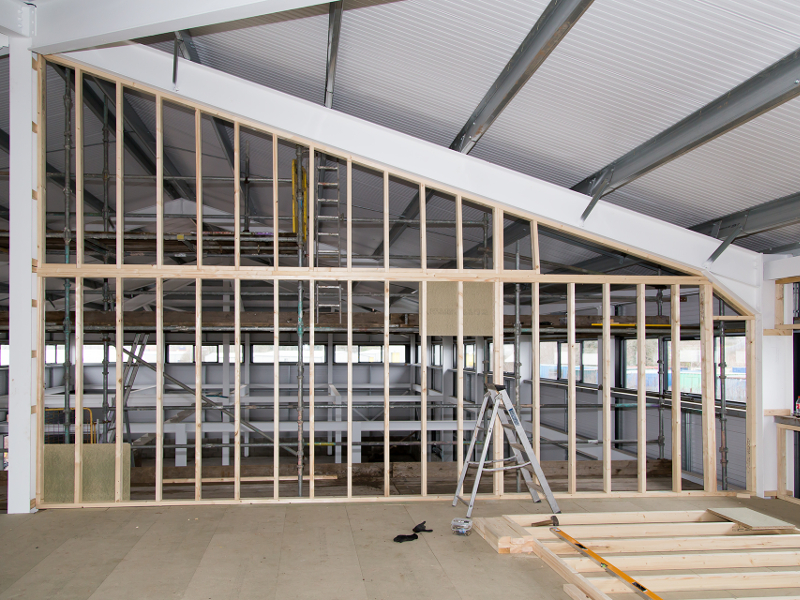

upper office area construction of partition wall and insulation being constructed

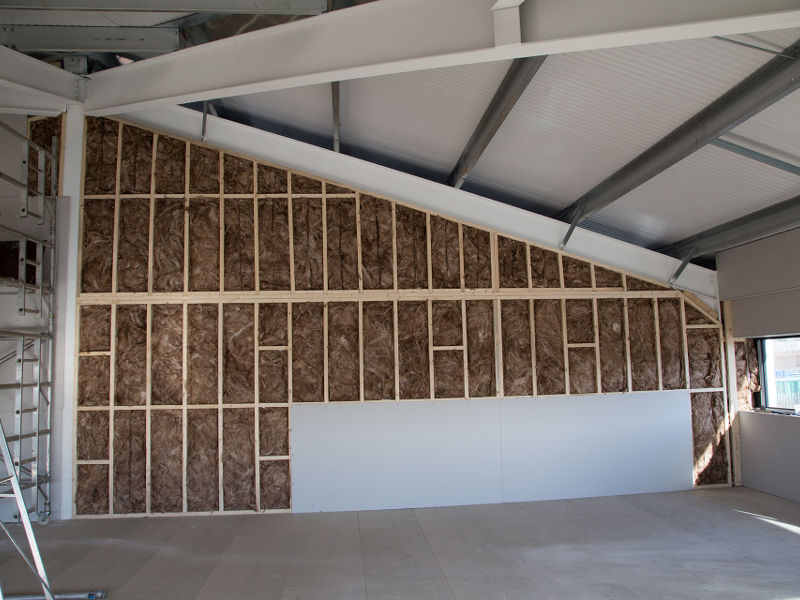

partition wall constructed and insulation being added

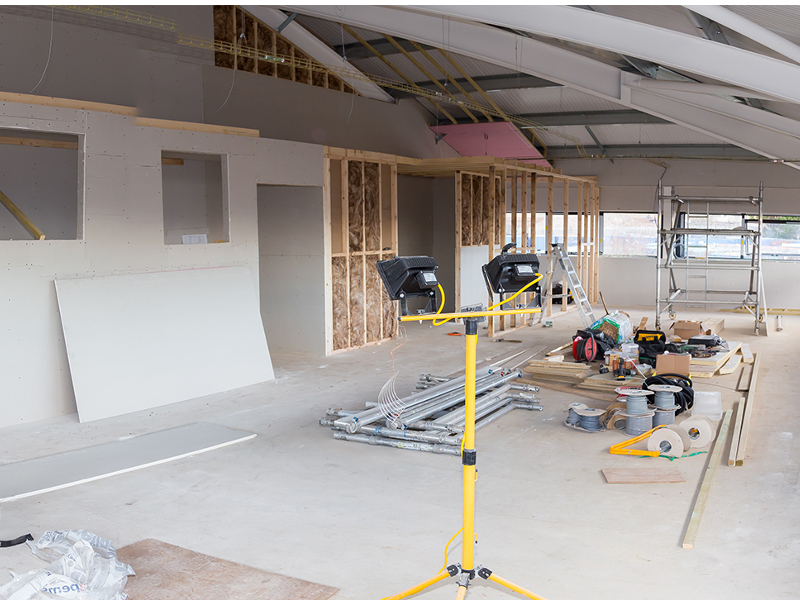

board up all insulation
  • Where customer specified extra finishing touches:-
  • Install wall trunking for Electrics and Data
  • Install upper Seperate male & female toilet and kitchen
  • Plaster and decorate to high standard
  • Install glass partition walls
  • Install air conditioning
  • Carpet through out

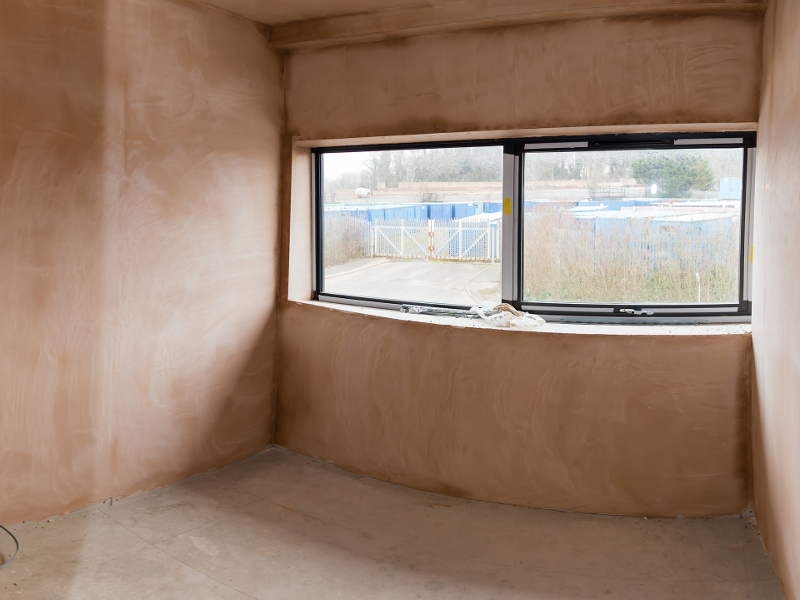

plastering finished and ready for services and decoration

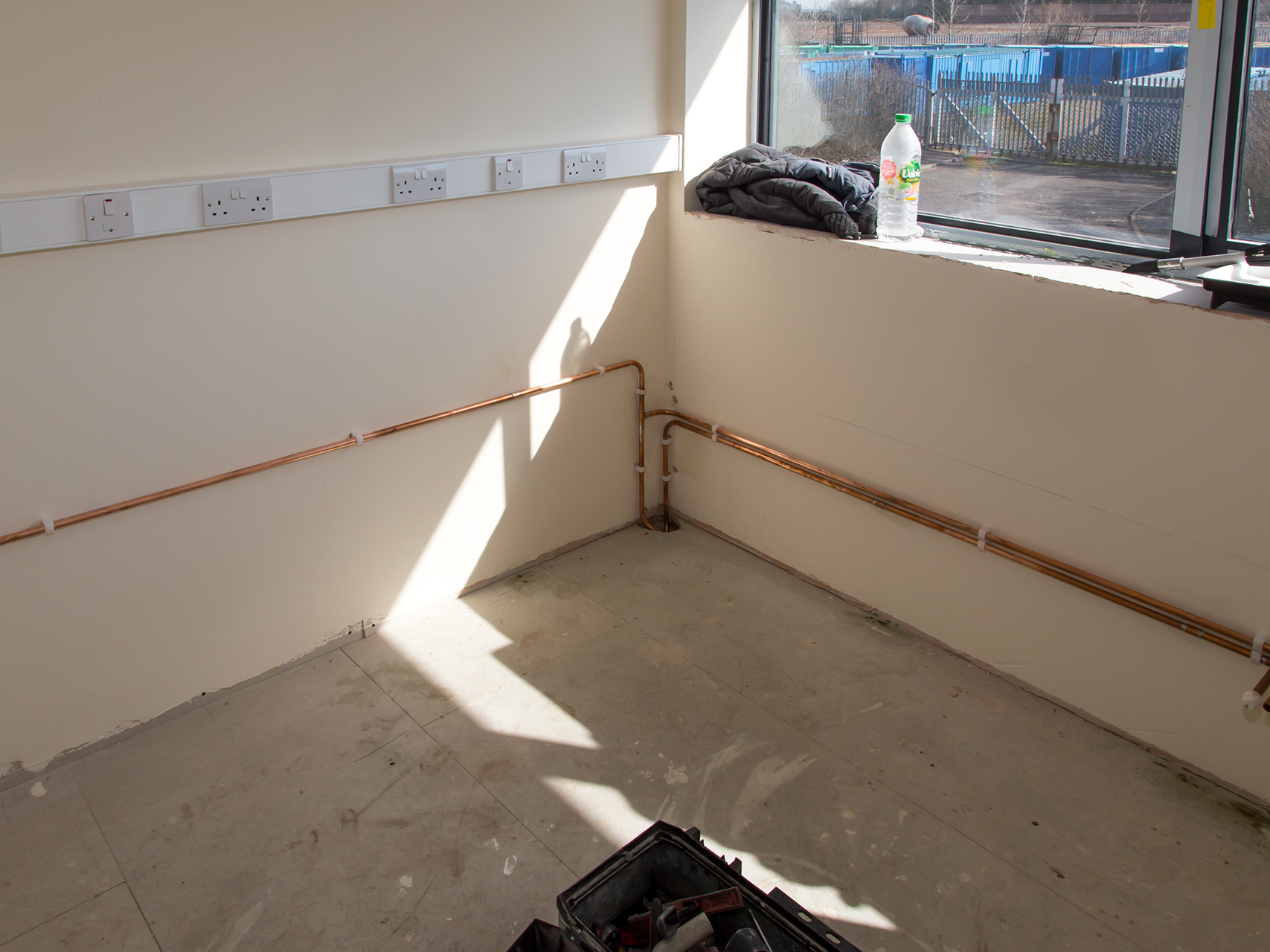

upper office and kitched area install of water and electrics now complete

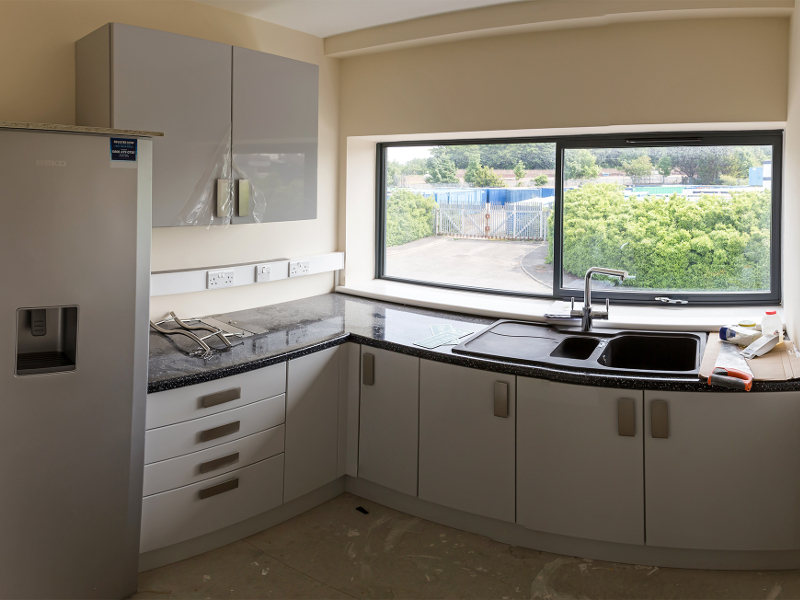

upper office area kitchen completed

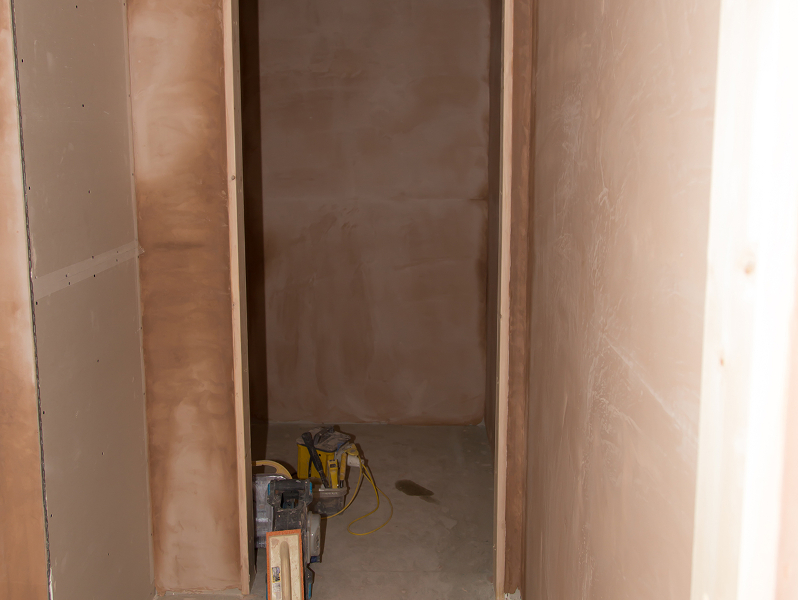

plastering the toilet area now complete

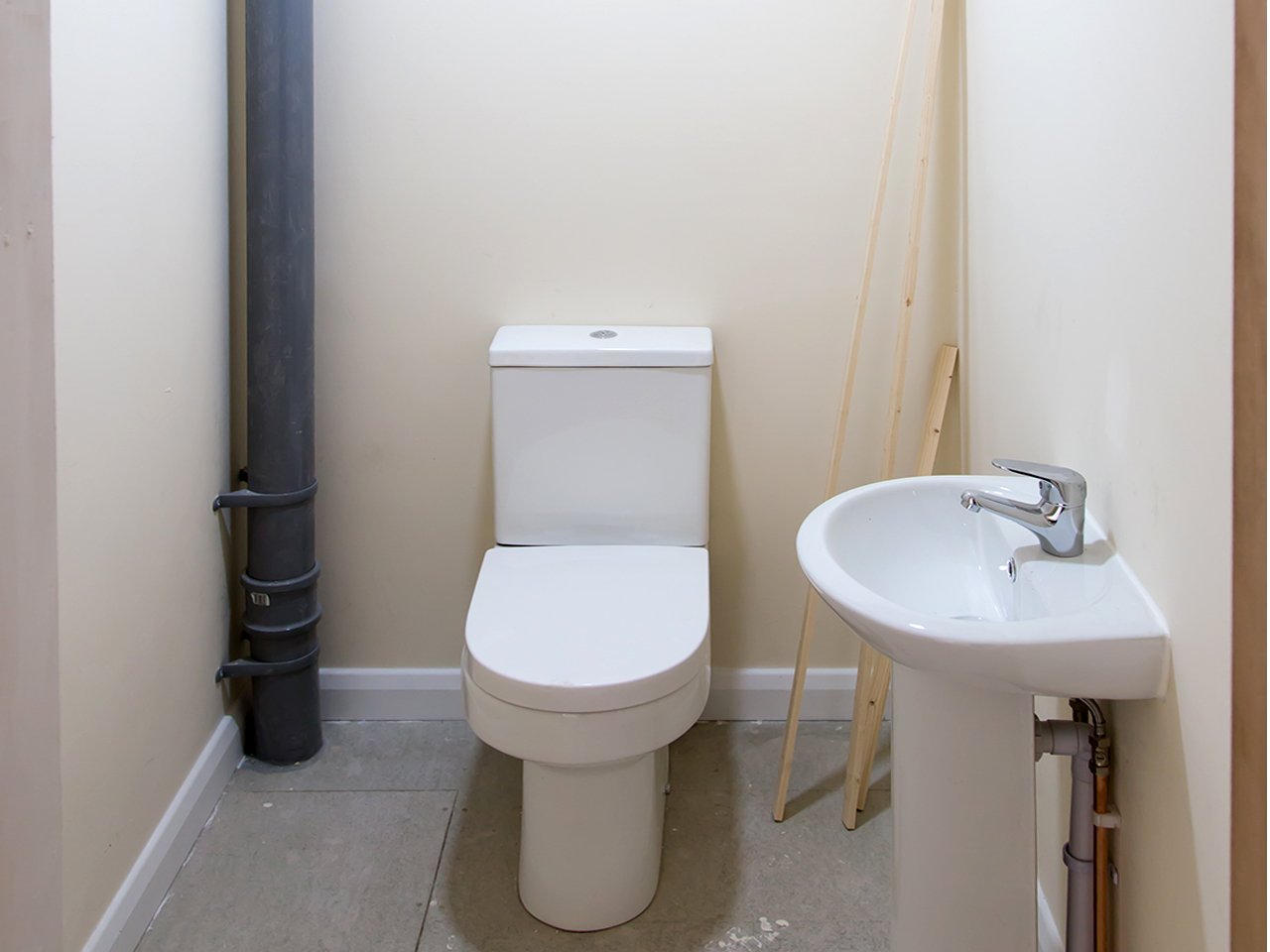

toilet appliances are installed and decorated

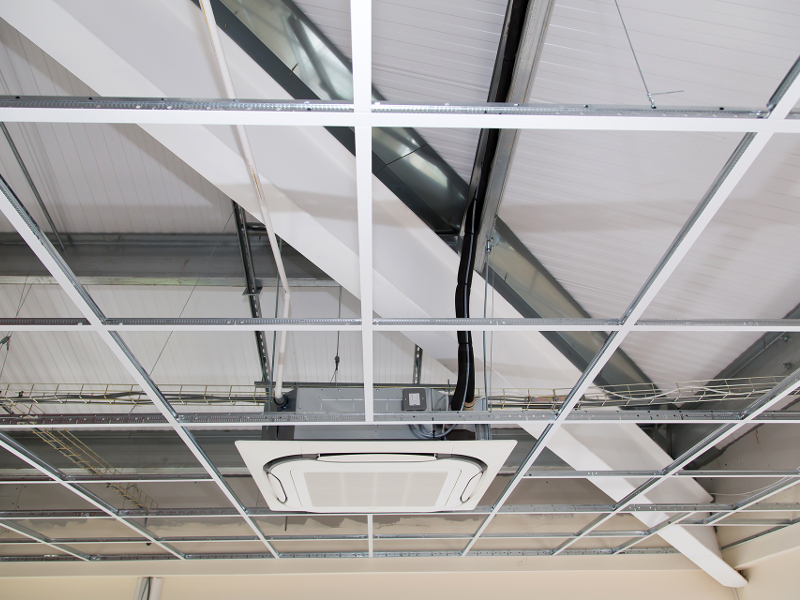

ceiling fitted with air conditioning units installed

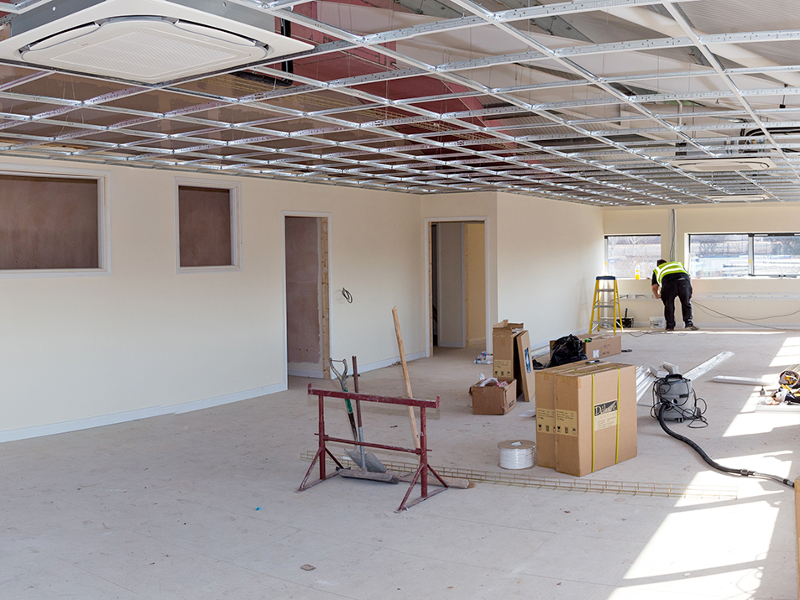

ceiling completed with air conditioning units fitted

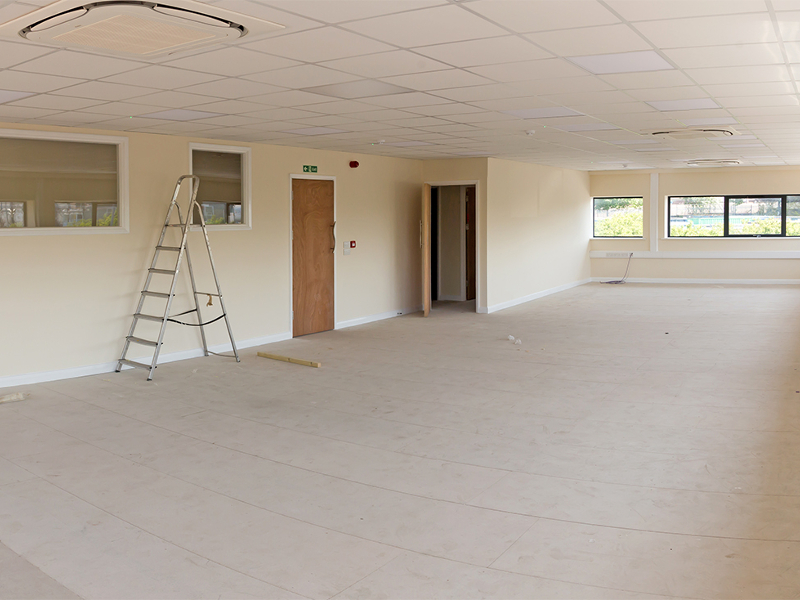

ceiling tiles fitted to finished ceiling

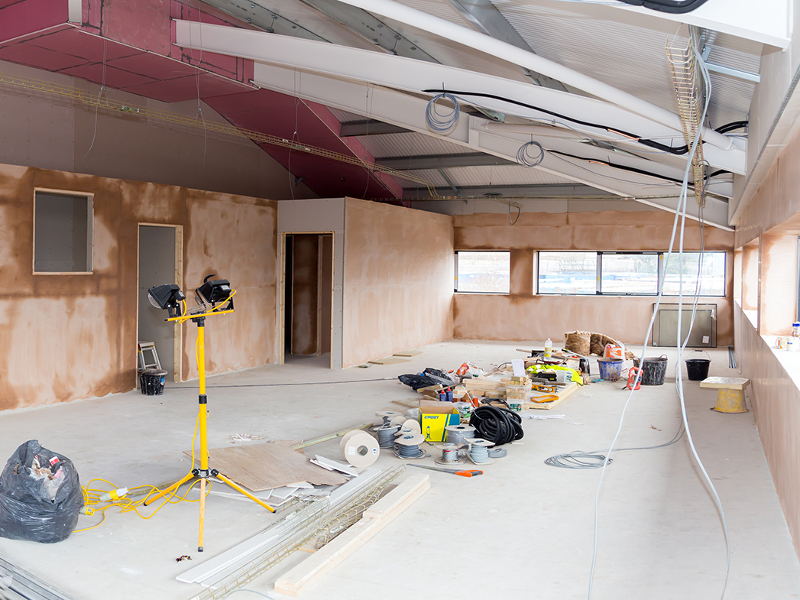

office area plastered

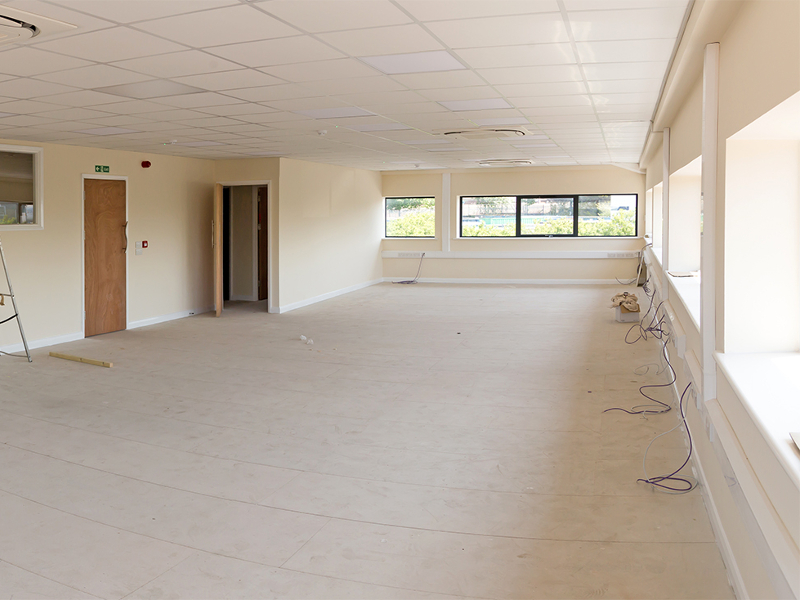

office area decorated with trunking added, electrics and data installed

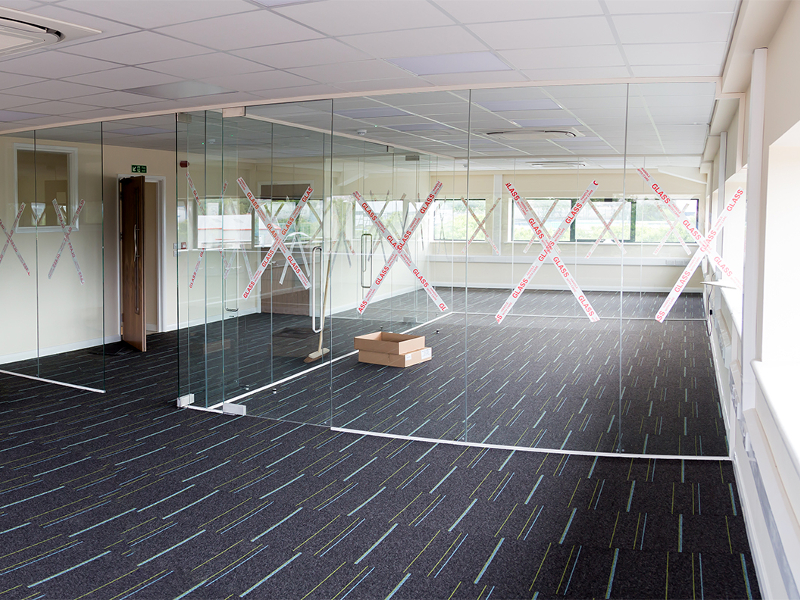

office area decorated with trunking installed to gice electrics and data, air conditioning installed, carpeted and glass partitions to finish it all off
entrance way building work completed, partition boarded ready for cableling
entrance way near completed, part decorated with finishing off of alarm systems needed
stairs carped and tiled, walls painted
